उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
China Mainland
| Applied Material: | PVC, PET, OPS | Automatic Grade: | Auto |
|---|---|---|---|
| Bottle type: | PET, Round Bottle, Flat Bottle | capacity: | 20000bph |
| Driven Type: | Electric | Product name: | Shrink Labeling Machine |
| हाई लाइट: | shrink sleeve labeling machine,bottle labeling machine |
||
Full Automatic Shrink Labeling Machine 20000bph For Condiment
Quick Detail:
1. Product: Full automatic double sides labeling machine
2. Model:WD –S350
3. Main Material: SS304
4. Production capacity: 20000bph(500ml)
5. Usage: Labeling machine
6. Warranty: 1year free
Full automatic double sides labeling machine
Description:
Full automatic double sides labeling machine
1. The Scope of Application
Label the front and back sides of different kinds of objects.
2. Device Characteristic:
Adopt mature technology PLC control system, operation is stable and high-speed
Using touch-screen control operating system, simple, practical, efficient;
Upgraded disc label station design, can label conical and flask bottle.
Screw adjustment to suppress body movements accurately
Synchronization chain mechanism ensures labeling smooth and precise calibration.
Advanced technology of pneumatic coding system, print the batch number and expiry clearly.
Transmission-type rolling bottles make sure the labels attached more firmly;
Labeling transparent label without bubble and self-adhesive label without wrinkle;
Butterfly designed station; the angle of machine can be adjusted to adapt the bottle's shape
3. Technical parameter
|
Model |
DLM-A |
|
Driving Mode |
Servo Motor |
|
Operating direction |
Right/Left |
|
Production(pcs/min) |
50-180(subject to the size of objects and labels) |
|
Conveyor speed(meter/min) |
≤40 |
|
Labeling accuracy |
±1.0mm(subject to the roughness of the plane) |
|
The application label |
Adhesive sticker, transparent or opaque |
|
The inner diameter of laebl rolll(mm) |
76mm |
|
The outer diameter of label roll (mm) |
350mm(max) |
|
The application size of label |
Width 15-140mm, length15-300mm |
|
The application size of bottle |
The machine can customized as label objects |
|
Weight(kg) |
220 |
|
Power(w) |
1000W |
|
Voltage |
AC 110V/220V 50/60HZ |
|
The appearance of machine(mm) |
2400(L) 1350(W) 1500(H)mm |
4. Main Electrical Configuration Table
|
No |
Name |
Model |
Unit |
Brand |
|
1 |
PLC control system |
6ES7214-1A |
1 set |
SIEMENS |
|
2 |
Touch-screen man-machine interface |
6AV6648-01A |
1 piece |
SIEMENS |
|
3 |
Inverter |
22F-A2P5N103 |
1 piece |
Delta |
|
4 |
photoelectric sensor (check label objects) |
FS-N18N |
1Set |
Japan KEYENCE |
|
5 |
Photoelectric sensor (check opaque label) |
GS61 |
2 sets |
German Leuze |
|
6 |
Main transport motor |
370W1:30 |
1 piece |
Switzerland ABB |
|
7 |
Sent label servo motor |
2004-RZ08BAIAN3 |
2 sets |
America AB |
|
8 |
Drive |
2003-CSD3-08BX2 |
2 sets |
America AB |
|
9 |
Separate Bottle Motor |
40W 1:30 |
2sets |
German JSCC |
Applicable Bottle Types
Various kinds of bottle types, for example; round bottle, square bottle, flat bottle, curved bottle and cup-oshaped,
etc.

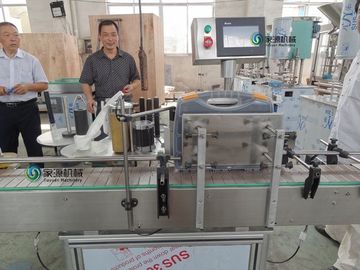

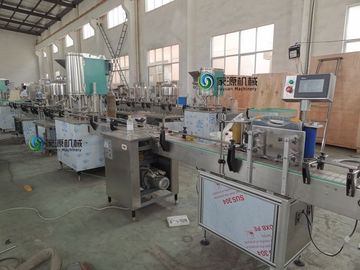

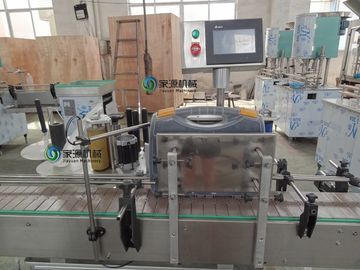

Pictures:
Competitive Advantage:
Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.
1. The company around 110 KM away from Shanghai, has convenient traffic.
2. The company was established in 1999, has rich experience.
3. We are an CE&SGS certified company.
4. We can produce kind of filling&packing machine, such as
5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
