30Kw Bottle Blowing Machine

मुझे नवीनतम उत्पाद अलर्ट भेजने।
(कोई स्पैम - हम नहीं बेचते या आपके ई-मेल पते का हिस्सा होता.)

30Kw Bottle Blowing Machine

चीन 30Kw Bottle Blowing Machine आपूर्तिकर्ता
30Kw Bottle Blowing Machine आपूर्तिकर्ता 30Kw Bottle Blowing Machine आपूर्तिकर्ता 30Kw Bottle Blowing Machine आपूर्तिकर्ता 30Kw Bottle Blowing Machine आपूर्तिकर्ता

बड़ी छवि :  30Kw Bottle Blowing Machine

उत्पाद विवरण:

Place of Origin: China Mainland
ब्रांड नाम: Jiayuan
प्रमाणन: CE,SGS
Model Number: 2cavity

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 1 set
मूल्य: Negotiation
Packaging Details: Seaworthy Wooden Case
Delivery Time: 40 days
Payment Terms: T/T; L/C
Supply Ability: 3 sets/month
Verified Supplier

China Mainland

  • Product Details
विस्तृत उत्पाद विवरण
Application: Water, Juice Automatic Grade: Automatic
Bottle type: PET, Barrel, Plastic Bottle capacity: 2000bph
Material: SS304 Product name: Bottle Blowing Machine
हाई लाइट:

Bottle Molding Machine

,

PET blowing machine



30Kw Automatic Plastic Bottle Blowing Machine For Mineral Water



Quick Detail:



1. Product: Automatic water bottle blowing machine prices

3. Main Material: SS304

4. Production capacity: 2000bph(500ml)

5. Usage: Fill pure/mineral/distilled water and so on

6. Dimension: 235x160x190cm

7. Warranty: 1year free

Automatic water bottle blowing machine prices





Description:



Automatic water bottle blowing machine prices

Features
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting
O. Low rejection rate: less than 0.2 percent.



Type

Item

Unit

Data

Output

Depend on bottle design

Pcs/h

1800-2000

Container

Resin available

/

PET

Body diameter

mm

50-120

Neck diameter

mm

20-38

Mold

Cavity

cavity

2

Mold thick

mm

240

Size

mm

240x320x370

Power

Power

V

380V/220V 50/60Hz

Electrical source power

KW

30

Really use power

KW

15

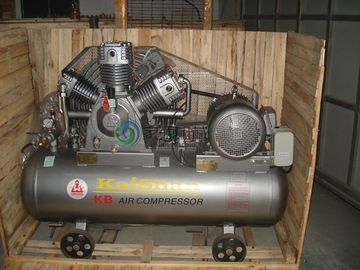

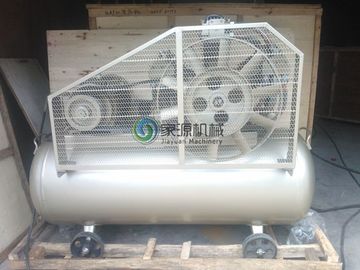

Air compressor

HP air compressor

Mpa

1.5m³/min 30kg

Air dryer

Mpa

1.0m³/min 30kg

Air filter

Mpa

1.0m³/min 30kg

Size

(normal)

Main machine weight

(L x W x H)

mm

1800x1400x1800

pre-form unscramble

(L x W x H)

mm

2000x950x2480

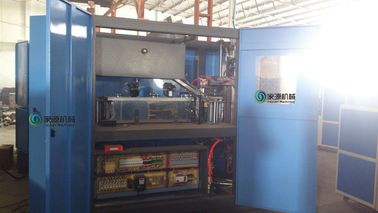

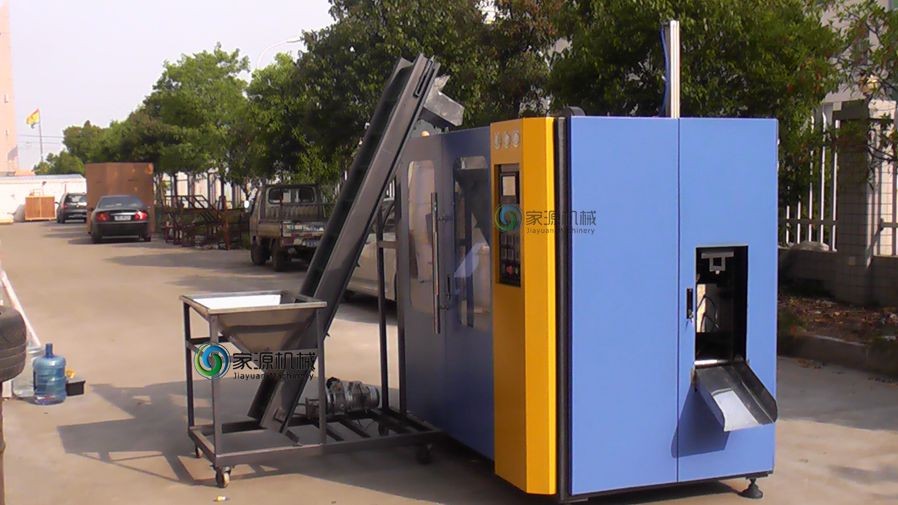

3) Pictures:



30Kw Bottle Blowing Machine 030Kw Bottle Blowing Machine 130Kw Bottle Blowing Machine 230Kw Bottle Blowing Machine 3
